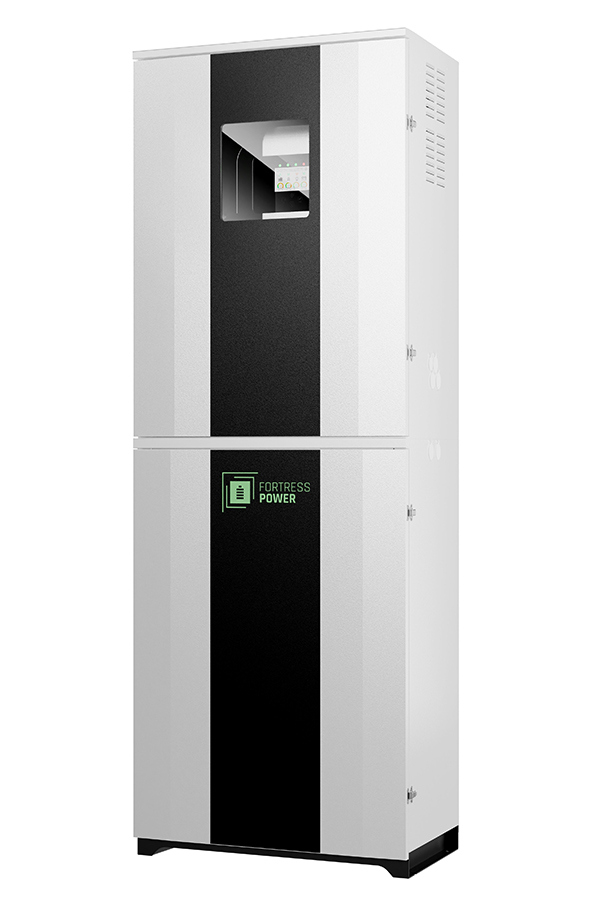

FlexTower
Full-System Enclosure
Description
The FlexTower is for your integrated energy storage system. Built on the foundation of the DuraRack battery cabinet, the FlexTower combines the battery, charge controller, and inverter into a single unit with an LCD control panel, and remote monitoring capability. The FlexTower is easy to install and carries IP65/NEMA3R ratings for indoor or outdoor use.
Specifications
Key Features
Downloads
Specifications
| DuraRack Specifications | |
| Enclosure Material | Carbon Steel |
| Enclosure Protection | IP65 water and dust proven (outdoor) |
| Enclosure Color | White |
| Dimensions [W x H x D] | 29.29 x 41.34 x 18.03 in (744 x 1050 x 458 mm) |
| Enclosure Weight | 59.6 kg / 153.2 lbs |
| Maximum Battery Units | 4 eFlex 5.4 |
| Storage Capacity Range | 5.4kWh – 21.6 kWh per unit |
| Max. Storage Capacity | 81 kWh (4 unites in parallel) |
| Knockout Size | 1inch & 2 inch |
| Positive and Negative Battery Busbars | 2 x 4 points; M8 (5/16) Terminal Rings |
| Positive and Negative Busbars to Inveter | 2 points; m10 (3/8) Terminal Rings |
| Battery Cables | 4 sets of |
| Terminal Torque | 7.0 – 7.7 Nm (5.1 – 5.7 ft-lb) |
| Enclosure Warranty | 3 Years |
| Certifications | UL9540, UL9540A, UL1973, CEC, SGIP |
Key Features
All-in-One Solution
- Inverter, charge controller, LCD Control Panel, Battery and remote monitoring app integrated in one unit
- Supports Off-grid, Back-up, Zero Export, Time-of-Use, Demand Response, Peak Shaving, and Virtual Power Plant
Flexible & Easy Install
- IP65 water and dust proof for indoor & outdoor installation. NEMA3R
- AC or DC couple to existing or new PV arrays
- Optional Rapid Shutdown Button Included
- Side knockouts sized for solar, grid, and generator wiring
Highest Reliability for Maximal Protection
- 8000+ cycle life with tier 1 Automotive Lithium Iron Phosphate (LFP) battery
- Easily scaled to meet all large residential and commercial electricity needs
Whole Home Backup with 200A Grid Pass-through
- 200A Pass-through eliminates backup panel requirement
- Saves time on inverter wiring
- Includes battery cables and combiner for additional savings
Highest Roundtrip Efficiency to Maximize Your Solar Investment
- >98% Battery Efficiency
- 5% CEC-Rated Inverter Efficiency
- Compatible with Din-Rail Heaters to maximize lifecycles in cold climates
